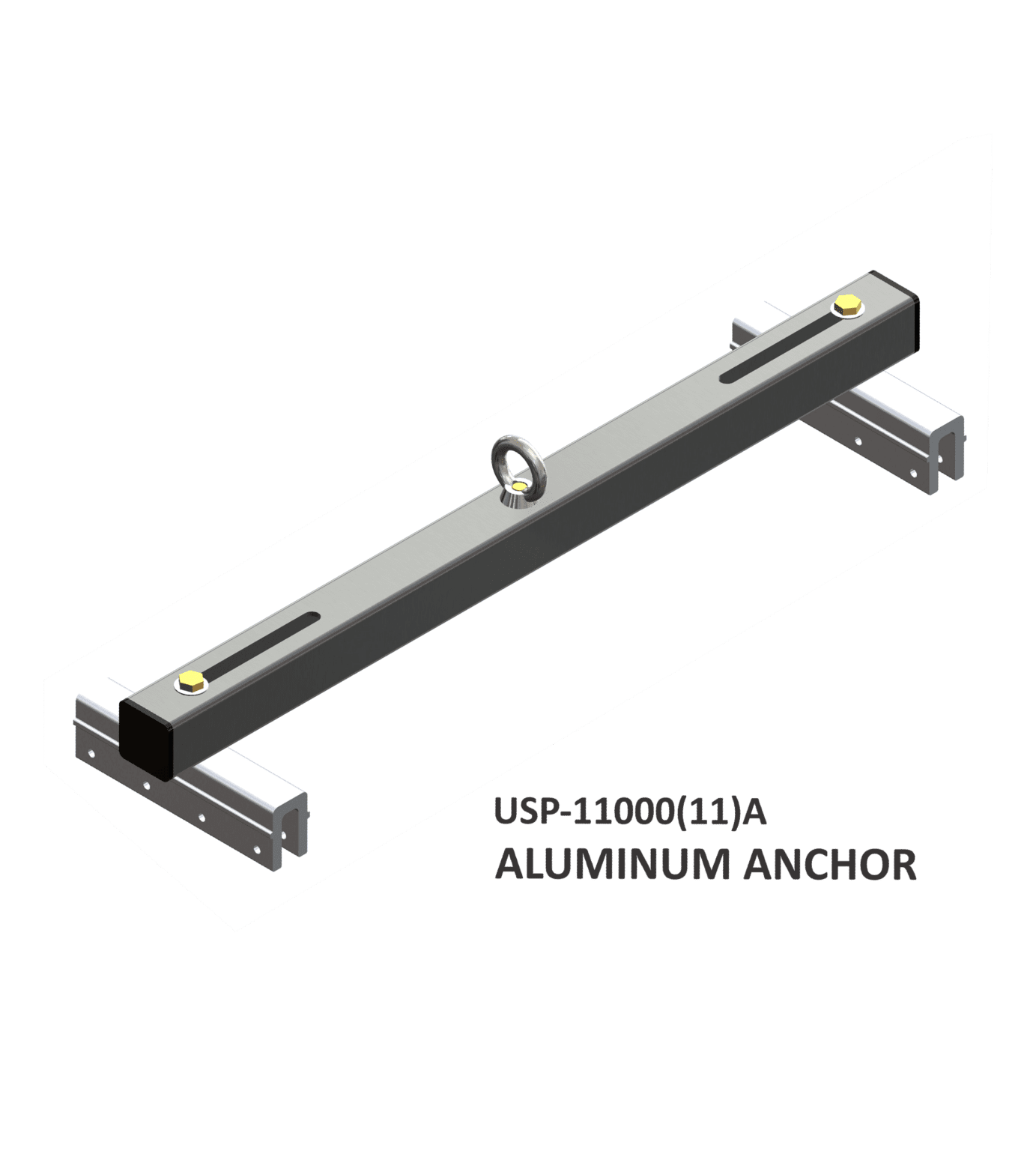

USP-11000(11) ALUMINIUM ANCHOR
USP-11000(11) ALUMINIUM ANCHOR
Features
- Anchor is compressed against the seam to seam distance fixed itself between the two vertical sides.
- Made up of high strength aluminum alloy and Mild Steel.
- Light weight & portable.
Certification
Compliance to : EN 795:2012 TYPE A
Application Usage:
| Technical Snapshot | |||||||
| Part code | Material | Finish | Minimum Opening | Maximum Opening | Min. Breaking Strength |
Weight | Compliance to |
| USP-11000(11)A | Mild Steel | Galvanized | 420mm | 664mm | 23kN | 3.0 Kg±100g | EN 795:2012 Type A, TS16415:2013 |
