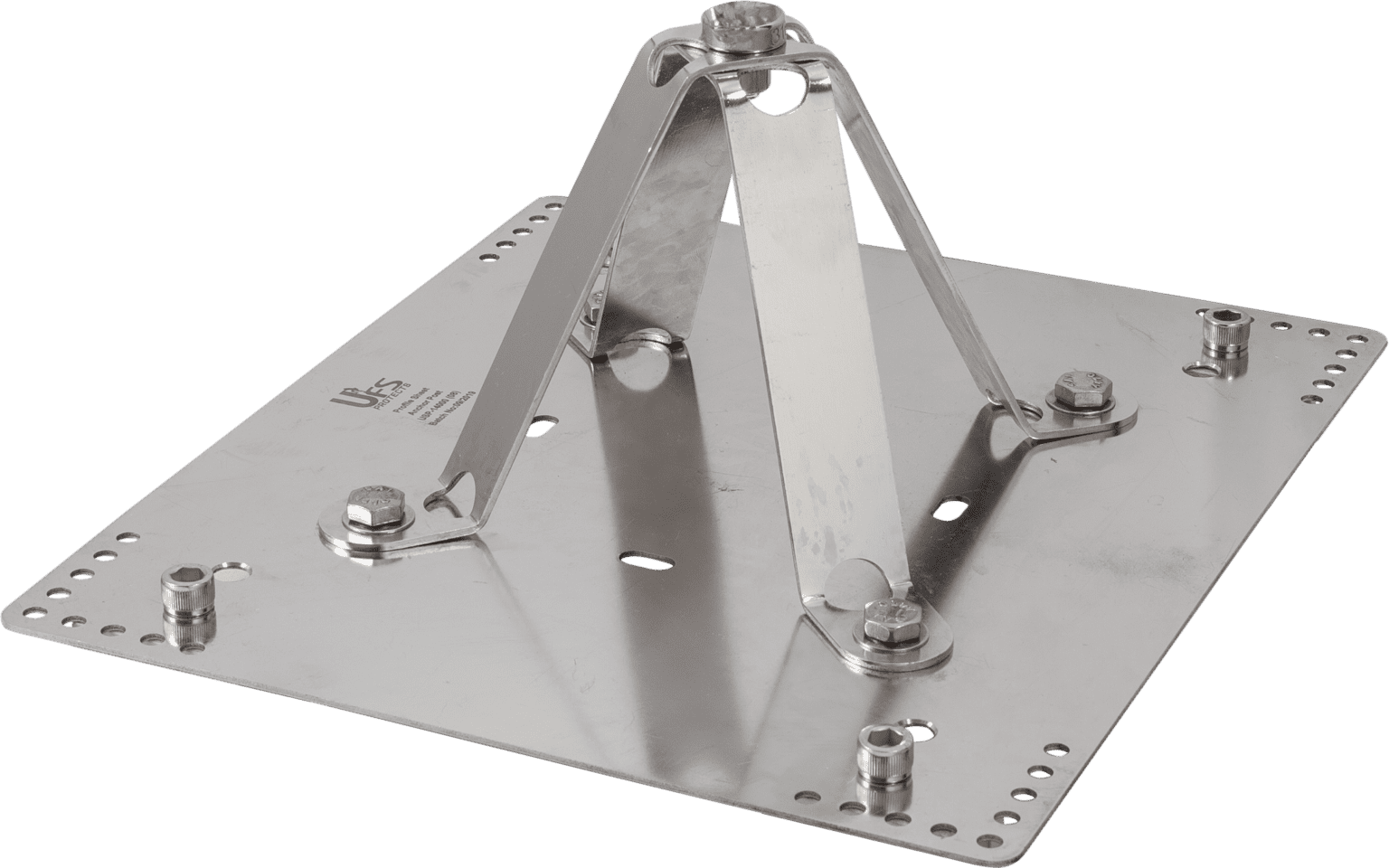

PROFILE SHEET INTERMEDIATE POST (ECO) USP-11000(08)EB
PROFILE SHEET INTERMEDIATE POST (ECO) USP-11000(08)EB
Features
This Post Intermediate is installed as Intermediate on horizontal lifelines to be fixed on trapezoidal roof tops. Series of precision cut holes on the base plate allows it to fit properly on trapezoidal roofs having sheets of different pitch/rib.
Certification
Conforms to :EN 795:2012 Type A, TS16415:2013
https://ufsppe.com/wp-content/uploads/2024/12/CE-1-1.png
Application Usage:
| Technical Snapshot | ||||
| Part code | Material | Finish | Min. Breaking Strength | Compliance to |
| USP-11000(08)EB | SS Grade 316 | Electro polished | 23kN | EN 795:2012 Type A, TS16415:2013 |
