UFS

USP-BR02

BEAM ROLLER-1

USP-BR02

Feature

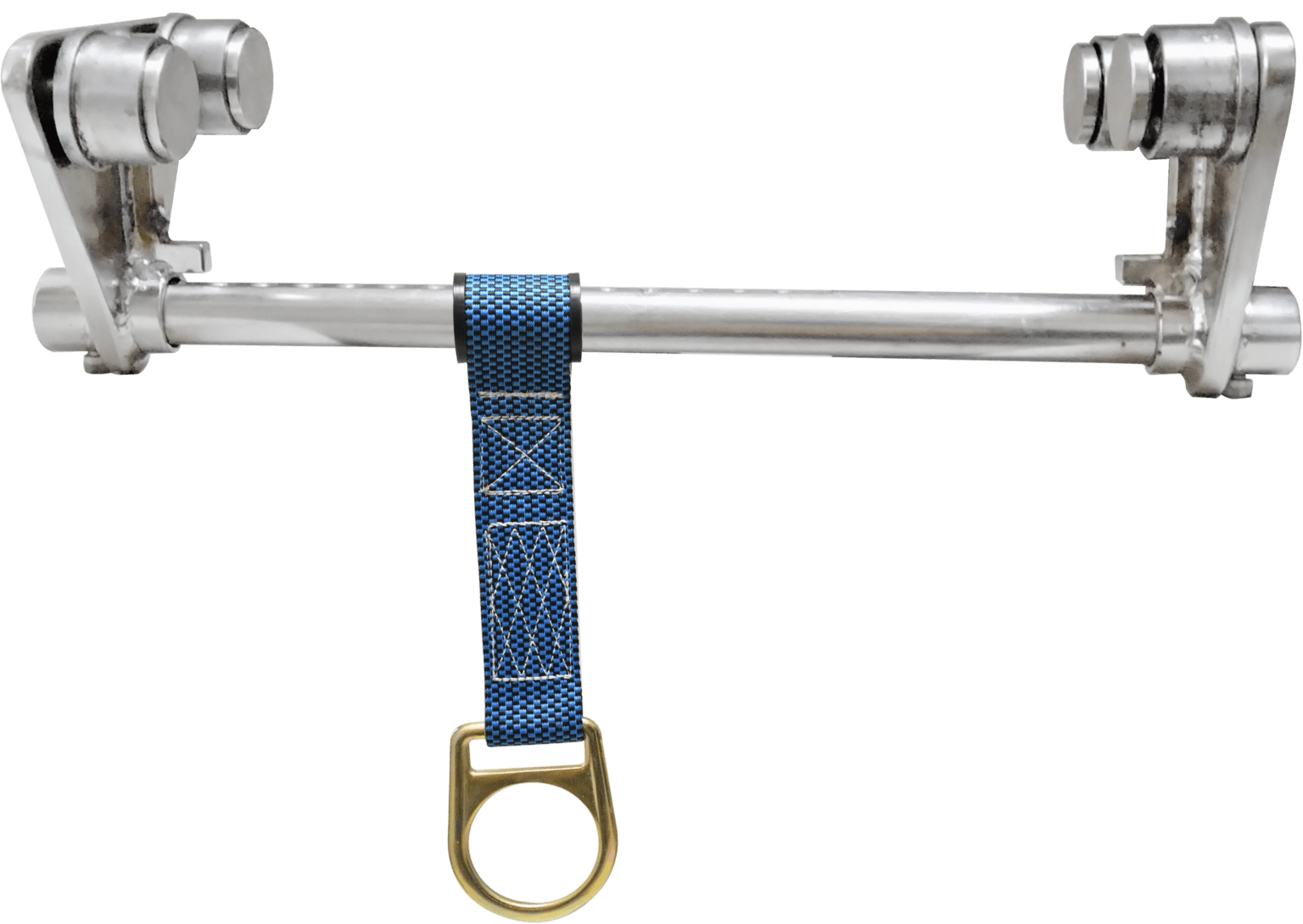

  • UFS Beam Roller, Provides a movable anchorage point  using the length of the beam on which is mounted to move along with the user. This Type of Beam Roller continuous safe anchorage by allowing the anchor point to travel across the length of the beam, along with the user.
  • Anchorage is provided by a steel  D- Ring attached to the Roller-bar. It is highly corrosion resistant, easy to install. Roller provide extremely smooth movement (Because of its Bearing) of Beam, over which is mounted.



Certification

Compliance to : EN 795:2012

Application Usage:

Speciality

Fitted on the flange of an I-Beam:

  • The Flanges are adjustable, width 80mm to 360mm
  • Beam Roller designed to be temporary install on a horizontal beam.
  • Dimension: 420mm X 125mm X 125mm (±05mm)
Technical Snapshot
Part code Material Finish Min. Breaking
Strength
Weight Compliance to
USP-BR02 SS Grade 316 Electro Polished  23 kN 4.3 Kg±50grm EN 795:2012
