Speciality

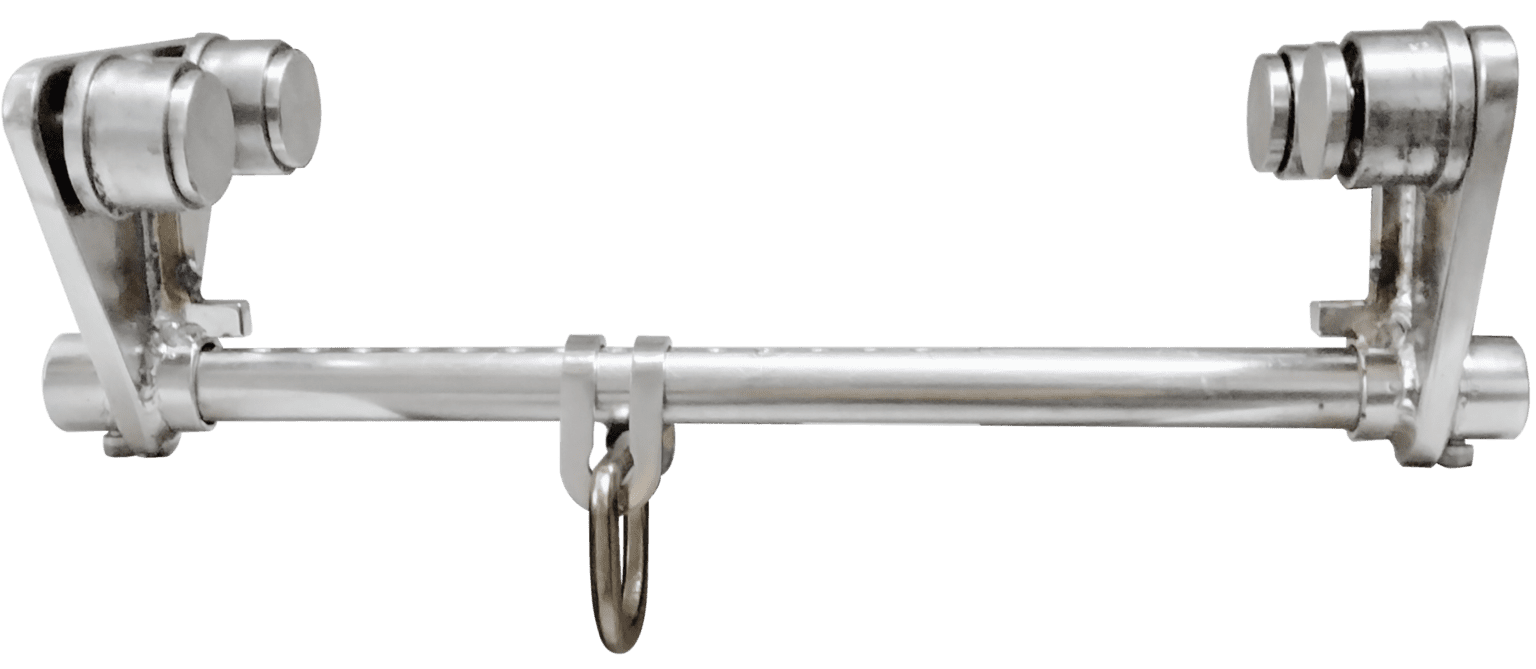

Fitted on the flange of an I-Beam:
- The Flanges are adjustable, width 80mm to 360mm
- Beam Roller designed to be temporary install on a horizontal beam.
- Dimension: 420mm X 125mm X 125mm (±05mm)
Technical Snapshot |
Part code |
Material |
Finish |
Min. Breaking
Strength |
Weight |
Compliance to |
USP-BR01 |
SS Grade 316 |
Electro Polished |
23 kN |
4.2 Kg±100grm |
EN 795:2012 |
