USP-19000(20)
USP-19000(20)

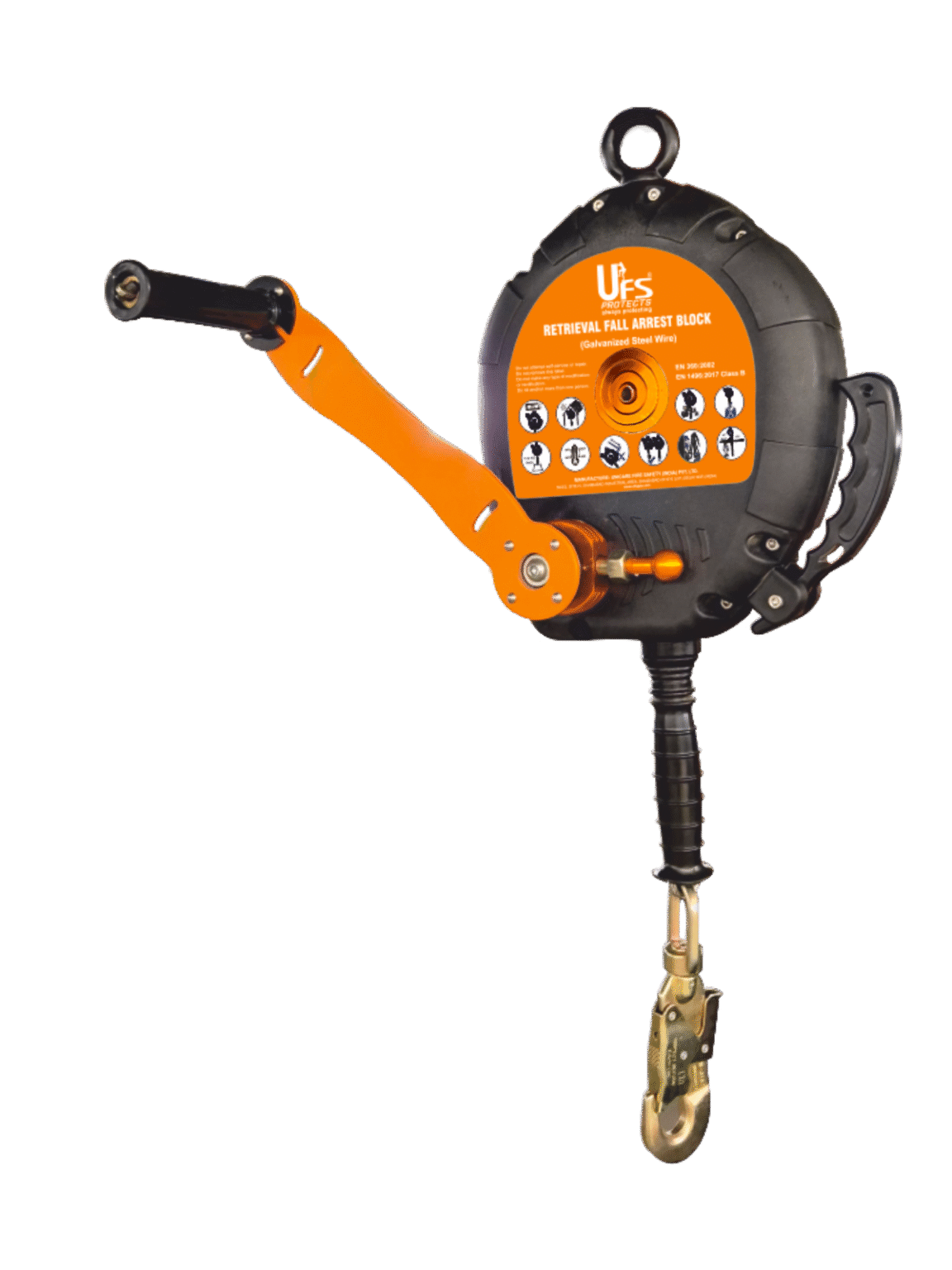

RETRIEVAL FALL ARREST BLOCK
Features
UFS Protects has developed a range of Retractable Fall Arrest Blocks with an integrated Rescue Retrieval function that allows a person (after a fall) to be lifted up or down in a controlled manner, this eliminates the rescuer to descend to the person and reduces the amount of time involved to carry out the rescue.
Certification
Complience to : EN 360:2002
https://ufsppe.com/wp-content/uploads/2024/12/CE-.png
Application Usage:
Specification :
- Ergonomic Carry Handle for ease of transportation Locking Pin to engage and release Fall Arrest and Rescue mode
- Integrated manual rescue mode function (hoisting and descending)
- Automatic Retractable Block
- Hydro Seepage System to allow water to be drained from block
- 4.5mm Galvanised Steel Cable for added strength and safety
- Snout reduces the locking of the cable when it is suddenly released
- Temperature Range: -30 to +50 C
| Technical Snapshot | |||||||
| Part code | Material of casing | Material and Dia of lifeline | Breaking Strength | Attached End | Anchorage End | Compliance | Weight |
| USP-19000(20) | High impact Strength polymer | Galvanized Steel Wire Rope of dia 4.5 mm. | 15kN | It comes with various options of UFS hooks to choose from as per the requirements. | Anchorage Eye with swivel action | EN 360:2002 | 9.4kg |
