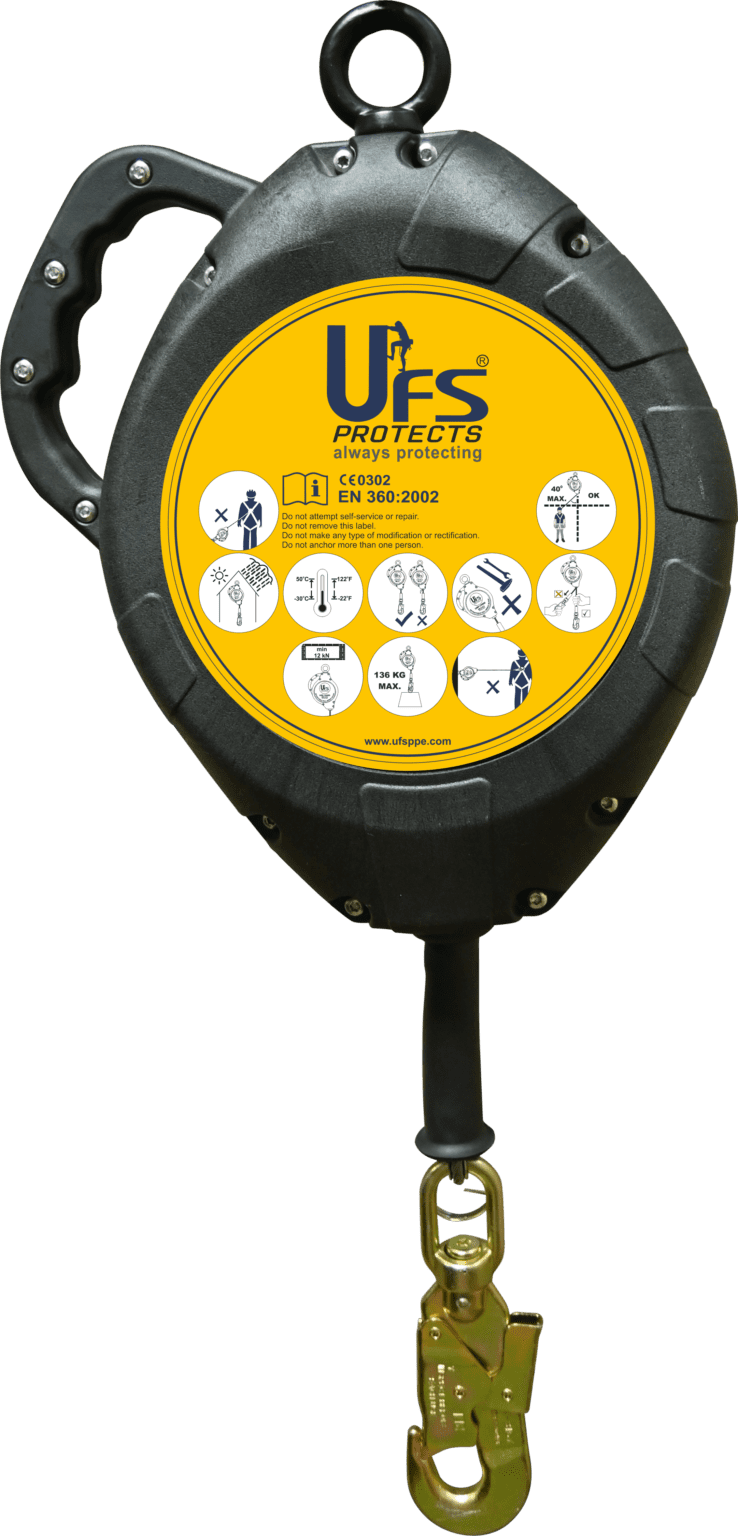

USP-16000(15)
USP-16000(15)
Features
- Amongst all the challenges faced in fall protection, the most difficult is when the anchorage is to high to access and the clearance distance is very small.
- To overcome this challenge, UFS offers Wire Rope Retractable Fall Arrest Blocks. Made of high impact Polymer Casing which is nearly indestructible.
- UFS’s Fall Arrestor Blocks comes with Galvanized Steel Wire Rope of 4.5 mm diameter, having a Minimum Breaking Strength of 15 kN.
- It is the only Fall Arrestor Block that is tested and certified with a 136 Kgs.
- Casing made up of high impact strength Polymer, to prevent damage and is nearly indestructible.
- Anchorage Eye with swivel action. Prevents undue twist of rope while working or in the event of a Fall.
Certification
Conforms to : EN 360:2002
https://ufsppe.com/wp-content/uploads/2024/12/CE-.png
Application Usage:
https://ufsppe.com/wp-content/uploads/2025/02/kgs.pnghttps://ufsppe.com/wp-content/uploads/2025/02/140-kg.png
| Technical Snapshot | |||||||
| Part code | Material of casing | Material and Dia of lifeline | Breaking Strength | Attachment End | Anchorage End | Certification | Weight |
| USP-16000(15) | High impact Strength polymer | Galvanized Steel Wire Rope of dia 4.5 mm. | 15kN | Has USP-H11 Hook with Load Indicator at attachment end. | Anchorage Eye with swivel action | EN 360:2002 | 8.4kg |
