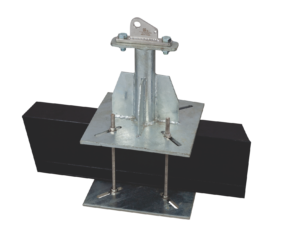

Standing Seam Corner Post USP-11000(03)B
Standing Seam Corner Post USP-11000(03)B
Features
This Post allows the horizontal life line systems to be installed at a curve of 90o on a standing seam roof. Series of precision cut holes on the base plate allows it to fit properly on a standing seam roof having a distance between 250mm to 350mm.
Certification
EN795:2012 TYPE-A, TS16415:2013
https://ufsppe.com/wp-content/uploads/2024/12/CE-1-1.png
Application Usage:
| Technical Snapshot | ||||
| Part code | Material | Finish | Min. Breaking Strength | Confirms to |
| USP-11000(03)B | SS Grade 316 | Electro Polished | 23kN | EN795:2012 TYPE-A, TS16415:2013 |
