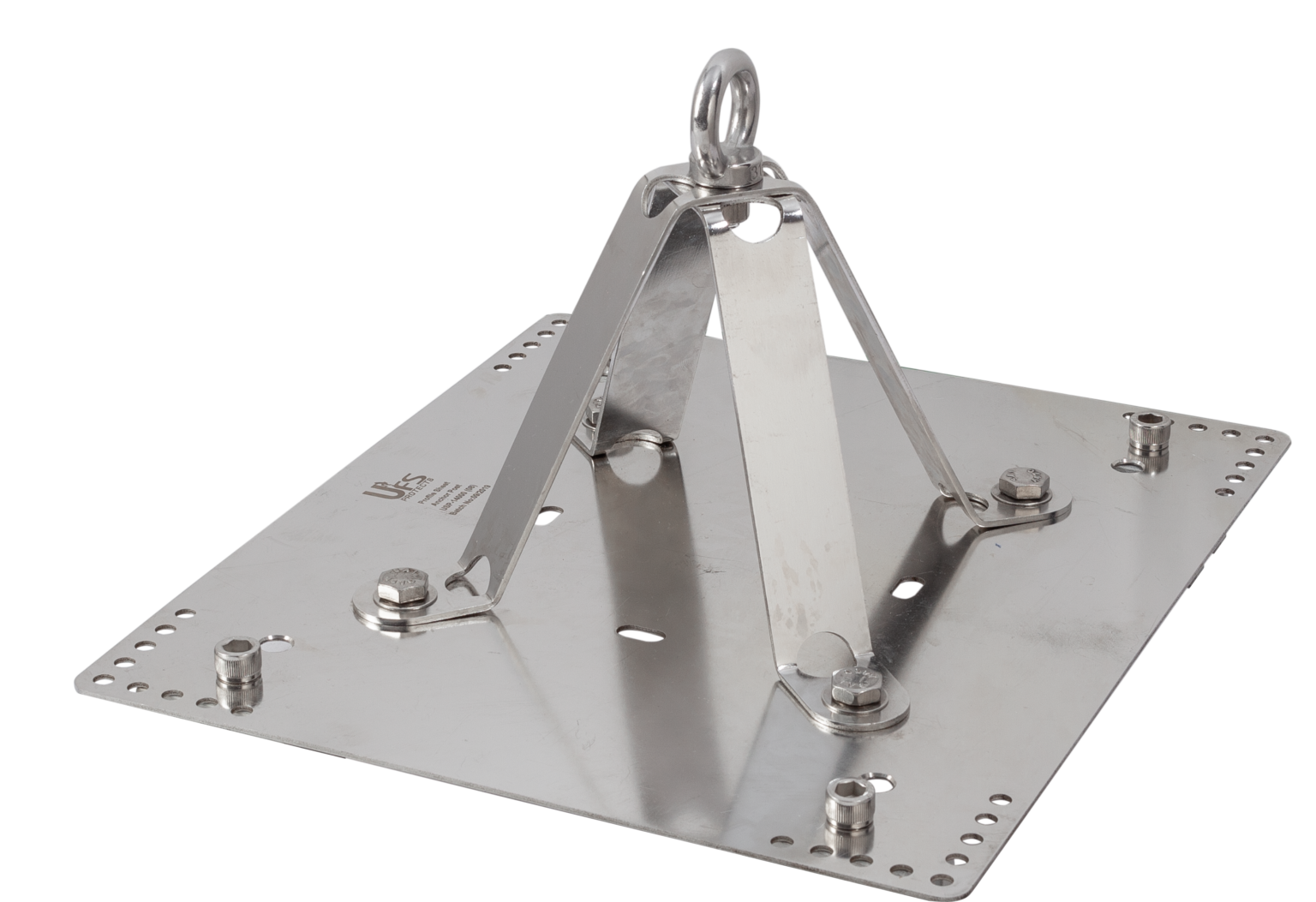

PROFILE SHEET AND ANCHOR POST(ECO) USP-11000(08)EA
PROFILE SHEET AND ANCHOR POST(ECO) USP-11000(08)EA
Features
The width of the base of this Post extremity has an adjustable opening allowing to adopt to any type of the roof. Series of precision cut holes allows it to fit properly on trapezoidal roofs having sheets of different pitch/rib. Along with this, an anchorage eye provides universal connection and can be used as an anchorage point.
Certification
Conforms to : EN 795:2012 Type A, TS16415:2013
https://ufsppe.com/wp-content/uploads/2024/12/CE-1-1.png
Application Usage:
| Technical Snapshot | ||||
| Part code | Material | Finish | Min. Breaking Strength |
Compliance to |
| USP-11000(08)EA | SS Grade 316 | Electro polished | 23kN | EN 795:2012 Type A, TS16415:2013 |
